6. Working with 3D Options

3D Options / Box

Boxed

The bounding box can be switched on or off.	In[1]:= b = Graphics3D[Stellate[Dodecahedron[]], Boxed -> False]; Show[b] In[2]:= JavaView[b]
	Compare with Mathematica

BoxRatios

BoxRatios is an option for Graphics3D and SurfaceGraphics which gives the ratios of side lengths for the bounding box of the three�dimensional picture.	In[1]:= br = Graphics3D[Stellate[Dodecahedron[]], BoxRatios -> {1., 2., 1.4}]; Show[br] In[2]:= JavaView[br]
	Compare with Mathematica

FaceGrids

FaceGrids is an option for three�dimensional graphics functions that specifies grid lines to draw on the faces of the bounding box.	In[1]:= fg = Graphics3D[Stellate[Dodecahedron[]], FaceGrids -> {{-1, 0, 0}, {1, 0, 0}}]; Show[fg] In[2]:= JavaView[fg]
	Compare with Mathematica

AxesEdge

AxesEdge is an option for three�dimensional graphics functions that specifies on which edges of the bounding box axes should be drawn.	In[1]:= ae = Graphics3D[Stellate[Dodecahedron[]], Axes -> True, AxesEdge -> {{-1, -1}, {-1, 1}, {1, 1}}]; Show[ae] In[2]:= JavaView[ae]
	Compare with Mathematica

BoxStyle

BoxStyle is an option for three�dimensional graphics functions which specifies how the bounding box should be rendered.	In[1]:= bs = Graphics3D[Stellate[Dodecahedron[]], BoxStyle -> {RGBColor[1, 0, 0], Dashing[{0.05, 0.05}]}]; Show[bs] In[2]:= JavaView[bs]
	Compare with Mathematica

3D Options / Light

Lighting

Lighting is a flag to disable the automatics lighting and use default coloring by height or apply a ColorFunction.	In[1]:= plf = Plot3D[Sin[xy], {x, 0, 3Pi/2}, {y, 0, 3Pi/2}, Lighting -> False]; Show[plf] In[2]:= JavaView[plf]
	Compare with Mathematica

LightSources

LightSources is an option forGraphics3D and related functions that specifies the properties of point light sources for simulated illumination.	In[1]:= ls = Graphics3D[Stellate[Dodecahedron[]], LightSources -> {{{1., 0., 0.}, RGBColor[1., 0.4, 0.4]}, {{-.15, .85, 0.}, RGBColor[0.4, 1., 0.4]}, {{-.15, -.85, 0.}, RGBColor[0.4, 0.4, 1.]}}]; Show[ls] In[2]:= JavaView[ls]
	Compare with Mathematica

AmbientLight

AmbientLight is an option for Graphics3D and related functions that gives the level of simulated ambient illumination in a three�dimensional picture.	In[1]:= al = Graphics3D[Stellate[Dodecahedron[]], AmbientLight -> RGBColor[0., 0.3, 0.]]; Show[al] In[2]:= JavaView[al]
	Compare with Mathematica

Shading

Shading is an option that specifies whether the surfaces should be shaded.	In[1]:= s = Graphics3D[ Stellate[Dodecahedron[]], Shading -> False]; Show[s] In[2]:= JavaView[s]
	Compare with Mathematica

3D Options / Mesh

This options are shown with a SurfaceGraphics object. Mathematica scales the surface automatically to box ratios x : y : z = 1 : 1 : 0.4 and clips very high and low z-values. JavaView shows the surface with the correct z coordinates, without automatic clipping so the surface looks different.

Mesh

Mesh is an option for SurfaceGraphics and DensityGraphics that specifies whether an explicit x�y mesh should be drawn.	In[1]:= nm = SurfaceGraphics[Table[Sin[x]*Exp[y], {x, -Pi, Pi, Pi/4.}, {y, -E, E, E/4.}], Mesh -> False]; Show[nm] In[2]:= JavaView[nm]
	Compare with Mathematica

MeshStyle

MeshStyle is an option forPlot3D,DensityPlot and related functions which specifies how mesh lines should be rendered.	In[1]:= ms = SurfaceGraphics[Table[Sin[x]*Exp[y], {x, -Pi, Pi, Pi/4.}, {y, -E, E, E/4.}], MeshStyle -> {Thickness[0.01], RGBColor[1., 0., 0.], Dashing[{0.02, 0.02}]}]; Show[ms] In[2]:= JavaView[ms]
	Compare with Mathematica

MeshRange

MeshRange is an option for ListPlot3D, SurfaceGraphics, ListContourPlot, ListDensityPlot and related functions which specifies the range of a and a coordinates that correspond to the array of a values given.	In[1]:= mr = SurfaceGraphics[Table[Sin[x]*Exp[y], {x, -Pi, Pi, Pi/4.}, {y, -E, E, E/4.}], MeshRange -> {{-Pi, Pi}, {-E, E}}, Axes -> True]; Show[mr] In[2]:= JavaView[mr]
	Compare with Mathematica

ClipFill

ClipFill is an option for SurfaceGraphics that specifies how clipped parts of the surface are to be drawn.	In[1]:= cf = SurfaceGraphics[Table[Sin[x]*Exp[y], {x, -Pi, Pi, Pi/4.}, {y, -E, E, E/4.}], ClipFill -> {GrayLevel[0.], GrayLevel[1.]}]; Show[cf] In[2]:= JavaView[cf]
	Compare with Mathematica

Shading

See 3D Options / Light.

HiddenSurface

HiddenSurface is an option for SurfaceGraphics which specifies whether faces are drawn. See also Shading.	In[1]:= hs = SurfaceGraphics[Table[Sin[x]*Exp[y], {x, -Pi, Pi, Pi/4.}, {y, -E, E, E/4.}], HiddenSurface -> False]; Show[hs] In[2]:= JavaView[hs]
	Compare with Mathematica

3D Options / View

ViewPoint

This option defines (in coordinates relative to the bounding box) the camera position.	In[1]:= vp = Graphics3D[Stellate[Dodecahedron[]], ViewPoint -> {3., 3., 1.}]; Show[vp] In[2]:= JavaView[vp]
	Compare with Mathematica

ViewCenter

The command ViewCenter modifies the interest of the camera.	In[1]:= vc = Graphics3D[Stellate[Dodecahedron[]], ViewCenter -> {1, 1, 1}]; Show[vc] In[2]:= JavaView[vc]
	Compare with Mathematica

ViewVertical

ViewVertical is an option for Graphics3D and SurfaceGraphics which specifies what direction in scaled coordinates should be vertical in the final image.	In[1]:= vv = Graphics3D[Stellate[Dodecahedron[]], ViewVertical -> {1., 1., 1.}]; Show[vv] In[2]:= JavaView[vv]
	Compare with Mathematica

SphericalRegion

Shows no effect in JavaView. SphericalRegion is an option to scale the geometry inside the display such, that it could be rotated without exceeding the display size - this should be ever possible in JavaView.

PolygonIntersections

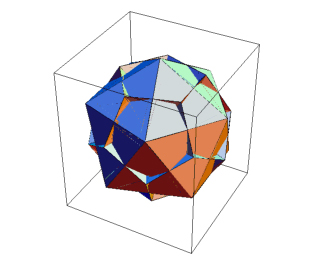

PolygonIntersections is an option for Graphics3D which specifies whether intersecting polygons should be left unchanged. Note: because of the large size of the MGS file (1 MB) the right cell shows an image. Follow the comparison link to watch the applet.	In[1]:= pi = Show[Graphics3D[{Stellate[Dodecahedron[], -0.5], Icosahedron[]}, PolygonIntersections -> False]]; Show[pi, PlotRagne-> All] In[2]:= JavaView[pi]
	Compare with Mathematica
